Cooling capacity

kW 40,9 ÷ 81,3

Heating capacity

kW 37,9 ÷ 75,8
  • Reversible heat pump
  • A++ high efficiency
  • Load-bearing and robust structure
  • Low noise level

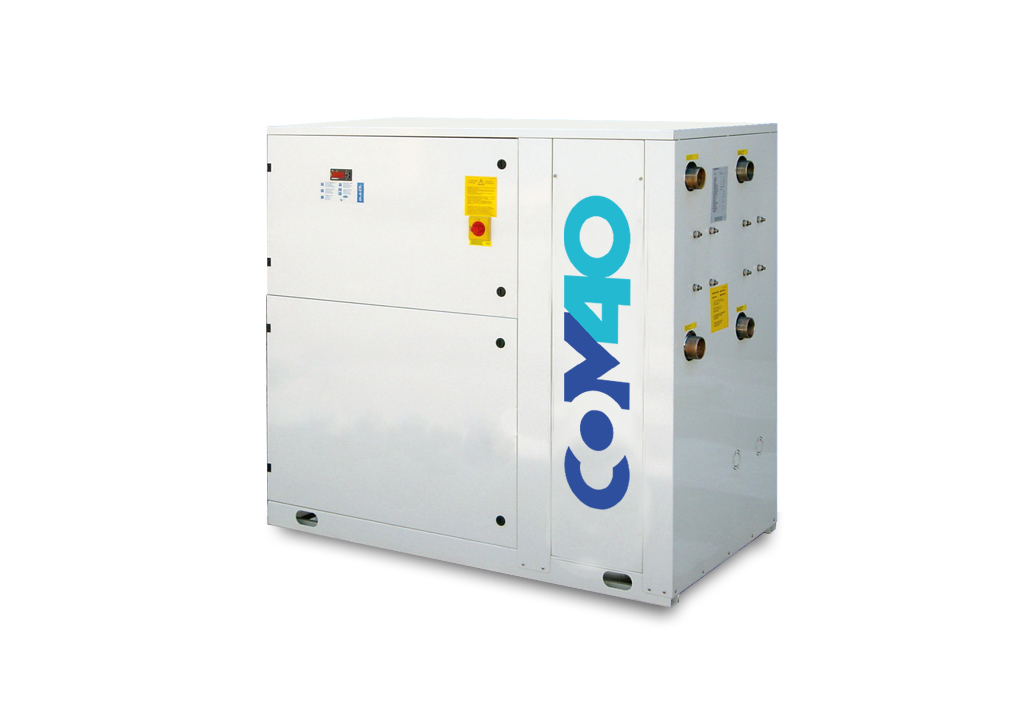

Geothermal water heat pump

EPH HE GEO are high efficiency geothermal heat pumps for indoor installation.

Available in 14 models with 1 or 2 compressor and 1 circuits with cooling capacity from 41 kW a 82.0 kW and heat capacity from 38 kW to 76 kW.

All groups are fitted with hermetic scroll type compressor sized for use with refrigerant type R407C.

The EPH units are scaled to satisfy installation requirements in commercial and industrial building, with particular focus on encumbrance and noise level and a series of accessory designed to facilitate installation and servicing.

The heat pumps of the EPH HE GEO series (previewed for the connection to geothermal exchangers) have been planned in order to guarantee one high efficiency also in particularly onerous conditions of job. The units mounted on a self supporting structure in galvanized steel section, painted with stove dried polyester powder.

All the groups are supplied completely wired and ready for connection to the user’s system. Before delivery each machine is tested while functioning and the intervention of all the safety devices present is checked.
